Condition:
New
Range Of Spindle Speed(r.p.m):
1 - 24000 Rpm
Positioning Accuracy (mm):
0.02 Mm
Number Of Axes:
3
No. Of Spindles:
Single
Working Table Size(mm):
600*900
Machine Type:

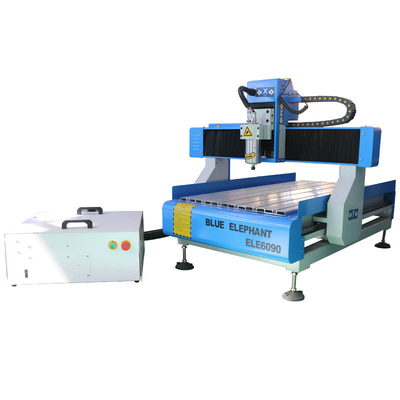

CNC Router
Travel (X Axis)(mm):
600 Mm
Travel (Y Axis)(mm):
900 Mm
Repeatability (X/Y/Z) (mm):
0.02 Mm
CNC Or Not:
CNC
Place Of Origin:
Shandong, China
Brand Name:
BLUE ELEPHANT
Voltage:
220V, 1phase, 50-60HZ
Dimension(L*W*H):
According To Your Order
Weight (KG):
1000
Control System Brand:
DSP, RichAuto
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, Pump
Application:
MDF WOOD ACRYLIC ALUMINUM
Feature:
Small Workpiece
Working Area:
600*900mm
Spindle:
1.5kw Changsheng Water Cooling Spindle
Motor & Driver:
Leadshine Mix Servo Motor & Driver
Traveling Speed:
7000mm/min
Working Speed:
7000mm/min
Inverter:
1.5kw Taiwan Delta Inverter
Linear Rail:
Taiwan HIWIN Linear Guide 20#
Control Box:
Inner Box
