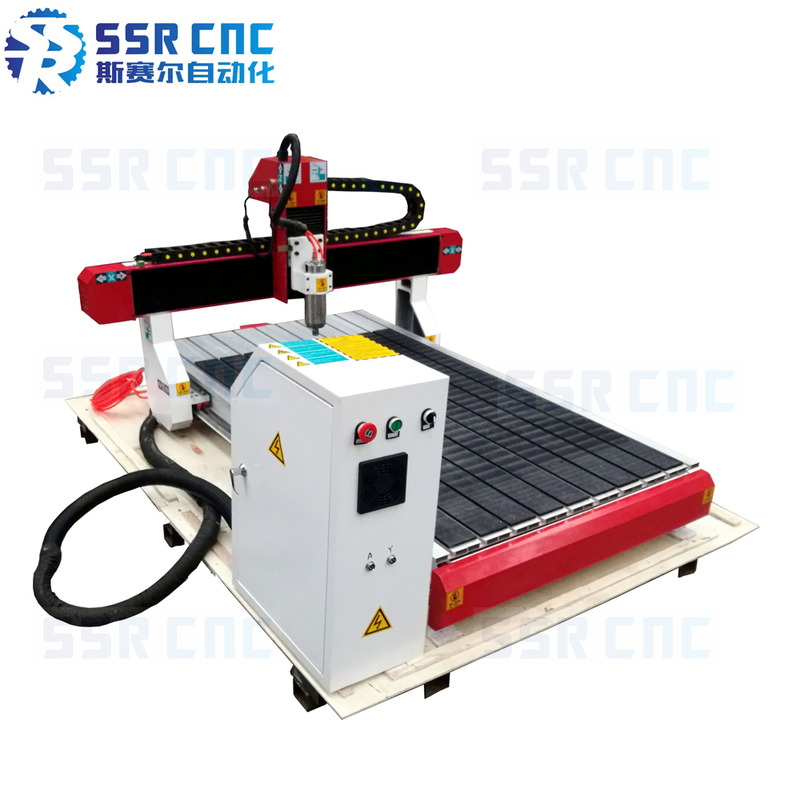

Desktop table wood/pvc cnc engraver router adopt Germany NEFF ball screw SSR-9012D
Features:
-Cast iron structure, very strong and durable, has good reliability.
-With imported ball screw transmission and imported rail guides, the machine with highworking precision.
-Small desktop machine body, can reduce the cost of transportation, and also suitable for work in a small workshop or office.
-With auto tool sensor, it helps to quickly find the starting working point.
-Low noise and long life.
-Powerful engine with high torque, large bearing, high speed, great working performance and the engine cannot be easily damaged.
-Computer operating system(Ncstudio), high responsive, stability and easy to operation.
-Easy to learn and operate, we will offer special training videos and other educational materials inEnglish
-Long warranty period
Technical Parameters:
|
Machine Model |
SSR-9012D |
|
Working Area(X, Y, Z) |
900mm*1200mm*150mm |
|
Table Size(X,Y) |
1020mm*1450mm |
|
Machine Dimension |
1700mm*1400mm*850mm |
|
Table Structure |
Aluminum T-slot |
|
Guide of X, Y ,Z |
Taiwan imported rail guides |
|
Transmission of X ,Y ,Z |
Imported ball screw |
|
Spindle Power |
1.5KW, water cooling |
|
Collet |
ER16 (diameter 3.175mm, 4mm, 6mm, 8mm, 10mm) |
|
Spindle Speed |
24000R/min |
|
Max. Travelling Speed |
10000mm/min |
|
Max. Working Speed |
8000mm/min |
|
Control System |
NC-STUDIO |
|
Positioning accuracy |
≤0.01mm |
|
Processing accuracy |
±0.01mm |
|
Motor |
Powerful 86 Series 450B Stepper Motor |
|
Driver |
Powerful LEADSHINE DMA860H Step Driver |
|
Work Zero Sensor X, Y, Z axis |
With |
|
Cutter Height Sensor |
With |
|
Wave Filter |
With |
|
Dustproof X, Z axis |
With |
|
Working Voltage |
220V, 50HZ |
|
Net Weight/Gross Wight |
290KGS/340KGS |
|
Package Size |
1770mm*1470mm*1050mm |
|
Warranty |
24 months |
|
Optional |
-2.2KW, 3.2KW, 4.5KW water cooling spindle; -1.5KW, 2.2KW, 3.5KW, 4.5KW air cooling spindle; -The rotary device (fourth axis) with diameter 100mm, 160mm, 200mm, -Can be customized according customers’ special requirements |
Applicable Materials:
Dual color board, acrylic, artificial stone, PVC board, wood, MDF, ABS.
Metallic materials such as steel, copper, aluminum, etc. Mainly used in the manufacture of molds, stone,cardboard, aluminum composite plates, copper plates, and other composite materials, bronze, steel stamp, rubber stamp, etc.
Applicable Areas:
Badges, modeling, steel casting, engraving, furniture engraving, gifts, souvenirs, crafts, signs, signage manufacturing,stamping, printing at the factory, engraving of advertising labels, cutting of advertising light-boxes.
Working Samples:
Detailed Pictures:
Optional Parts:
Details determine sucess or failure
1. We use international standard exporting plywood package, which is fumigation-free
2. We offer item FOB, CIF, CFR, DDU, EXW by sea:
3. We can also offer delivery by air for small package machine
