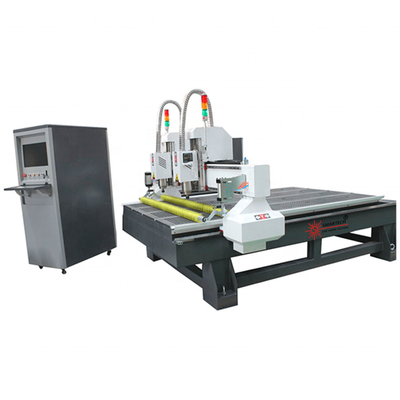

Desktop 3 Axis Woodworking CNC Router 3D Split Cnc Router Woodworking Machine

1 Set
MOQ
$6,000.00(1 - 1 Sets) $3,000.00(>=2 Sets)
Price
Desktop 3 Axis Woodworking CNC Router 3D Split Cnc Router Woodworking Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Range Of Spindle Speed(r.p.m): 1 - 24000 Rpm
Positioning Accuracy (mm): 0.03 Mm
Number Of Axes: 3
No. Of Spindles: Double
Working Table Size(mm): 1500x2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1500 Mm
Travel (Y Axis)(mm): 2500 Mm
Repeatability (X/Y/Z) (mm): 0.03 Mm
Spindle Motor Power(kW): 3.7KW
CNC Or Not: CNC
Place Of Origin: Shandong, China
Brand Name: SMARTECH
Voltage: AC220V,50HZ/AC380V,50HZ
Dimension(L*W*H): 1500mm*2500mm*200mm
Power (kW): 3
Weight (KG): 1500
Control System Brand: NC Studio, Mach3, DSP, RichAuto
Warranty: 3 Years
Key Selling Points: Easy To Operate
Applicable Industries: Garment Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Food & Beverage Shops, Advertising Company
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 3 Years
Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox
X,Y,Z Working Area: 1500*2500*200mm
Table Size: 2250*3640mm
X,Y,Z Traveling Positioning Accuracy: ±0.03/300mm
X,Y,Z Repositioning Accuracy: ±0.03mm
Table Surface: Vacuum And T-slot Combined(option:T-slot Table)
Frame: Steel Tube Welded Structure
X,Y Structure: Rack And Pinion Drive, Hiwin Rails Linear Bearings
Z Structure: Hiwin Rails Linear Bearings And Ball Screw
Max. Power Consumption: 3.0kw(without Spindle)
Max. Rapid Travel Rate: 30,000mm/min
Basic Infomation
Place of Origin: Shandong, China
Brand Name: SMARTECH, NC Studio, Mach3, DSP, RichAuto
Payment & Shipping Terms
Packaging Details: In plywood carton
Product Description
Product Description
Max. Working Speed
25,000mm/min
Spindle Power
3.0/4.5/6/7 KW Air / Water Cooling Spindle
Spindle Speed
0-18000 RPM/0-24000RPM
Drive Motors
Stepper Motor System/ Servo
Working Voltage
AC380V, 50/60Hz, 3PH (Option:220V)
Command Language
G Code
Operating System
DSP Control System (Options:Ncstudio/ Mach3 PC Software)
Computer Interface
USB
Collet
ER25/ER32
X,Y Resolution
< 0.03mm
Software Compatibility
Type3/Ucancame V9 Software(Option: Artcam Software)
Running Environment Temperature
0°-45°
Relative Humidity
30%-75%
Packing Size
3750x2250x2100mm
N.W
1750kg
G.W.
2190kg
Right elevation
Left elevation
Front elevation



Main Features
This machine is the latest research and development cnc router by SMARTECH group. In order to deal with the sea freight caused by the Covid-19,We developed this split design cnc router to reduce the space. Previously, only 9 machines could be loaded in a 40' container, but now 24 sets machines can be fit.
Advantages of Double Spindles cnc router from Smartech
Easy and safe operation and low maintenance cost. Single or double rotary devices are available for the cnc router as an option 3.0kw HQD spindle and 4.5kw HQD spindle, spindles can be changed with the demands from system. One optional spindle can be rotated 90 degree for lock slot, side milling woodworking etc Overall seamless steel tube structure. After tempering treatment, reliving of internal pressure, ensure the bathe more rigidty, reliability and durability, no distoration for whole structure. Top-quality world famous brand components, to make the machine hig-precision and high-efficiency. HSD spindle, Delta inverter, TBI ball screw, Syntec control system etc, Humanized and beautiful designing. Breakpoint specific memory to keep the carving status when power off, processing time forcast and other functions in case of the accidental power outages.
* With High efficiency;High stable;Multi-use Popular controller;High loading capacity and smooth operation. * This machine is suit for diverse complexity products processing:engraving and milling,drilling,cutting,chamfering edge. * Large compatibility of drawing software, such as type3/Actcam/Artcut, etc. * The advanced professional control system compatible with many instructionformat, may achieve process function in interruption of power supply, breakpoint and next day which is more convenient and save labor. * Machine body use heavy steel structure, welding tempering aging,strong enough to avoid shape change.
