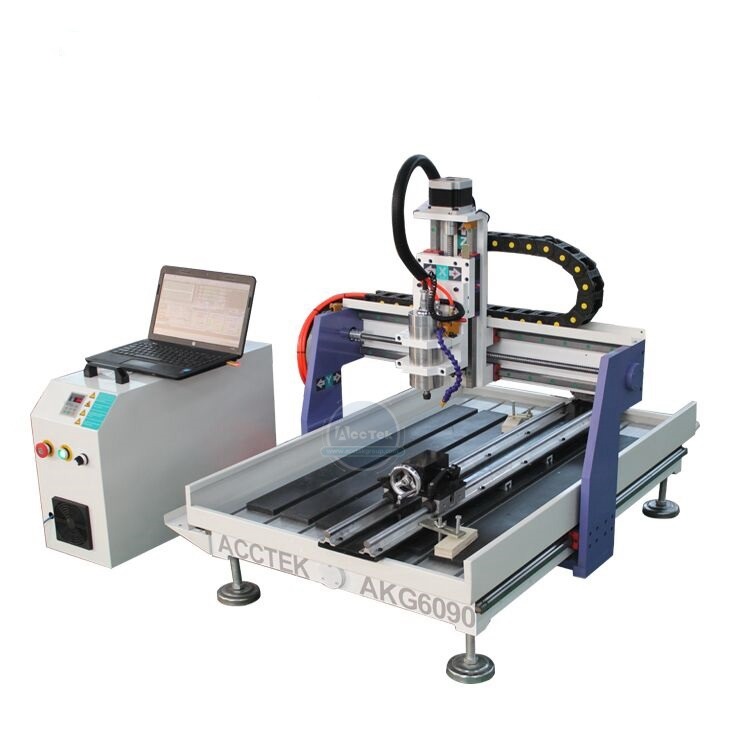

Model
|
AKG6090
|
|
|
Working area
|
600*900*200mm
|
|
|
Spindle Motor
|
Changsheng 1.5kw water cooling spindle
|
|
|
Working Mode
|
Leadshine driver M542 and stepper motor 311
|
|
|
Control System
|
Mach3 controller
|
|
|
Inverter
|
Fuling
|
|
|
Drive Mechanism
|
XYZ by Taiwan TBI ball screw
|
|
|
Rail guide
|
XYZ by Taiwan HIWIN linear square guide rail 20No.
|
|
|
Table Surface
|
PVC T-slot table with clamping
|
|
|
Frame
|
Aluminum gantry, whole industrial class cast iron body technology
|
|
|
Software
|
Artcam/Type3/Ucancam software
|
|
|
Limit switch
|
From Japan OMRON
|
|
|
Z-axis setting
|
Z origin tool sensor
|
|
|
Technical Parameters:
|
|
|
|
Motion Positioning Accuracy
|
± 0.03/300mm
|
|
|
Repositioning Accuracy
|
± 0.05mm
|
|
|
Max Motion Speed
|
7000mm/min
|
|
|
Max Engraving Speed
|
5000mm/min
|
|
|
Rotating Speed of Spindle
|
24000RPM
|
|
|
Command language
|
G code, *.u00, *.plt
|
|
|
Operating Voltage
|
1phase 220V±10% 50Hz(Can be customized)
|
|
|
MOQ
|
1set
|
|
|
Net/Gross Weight
|
230kg/260kg
|
|
|
Packing
|
Standard shipping export plywood case with reinforced type.
|
|
|
ACCTEK Service
|
|
|
||
|
1
|
Guarantee
|
24months guarantee of the whole machine.
|
||
|
2
|
Software issue
|
Our technician is able to re-install or set up by remote for free.
|
||
|
3
|
Hardware issue
|
Main parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty
period. |
||
|
4
|
Support online
|
Our technician is able to teach you online to run the machine or eliminate the fault for free.
|
||
|
5
|
Training in AccTek factory
|
We are able to train your staff after placed order in our factory for free.
|
||
|
6
|
On-site training
(Recommended, the most effective way) |
We are able to send technician to your workshop to do the installation and training. You will need bear the related costs
(flight,visa,hotel,training costs, etc.) |
||
