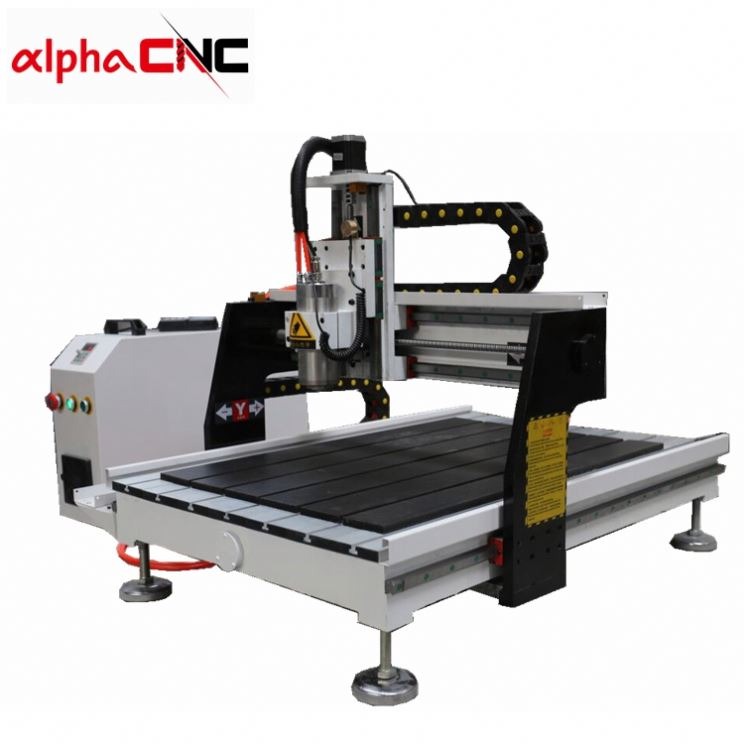

The Alpha mini CNC Router was designed to be the best small CNC Router on the market today. Always on Target to improve our machines, the Alpha Mini is now offered as a freestanding CNC machine, or a table top system. The machine structure is iron cast, it is with high precision and good damping effect.
This CNC Router works well for the Custom Furniture and Cabinet builder as well as the serious Hobbyist that wants a commercial grade CNC Table. If you have a small shop, but don't want to sacrifice quality for the size, then this CNC router is the perfect choice.
The machine can process: wood, MDF, acrylic, epoxy resin, ABS, PP, PE, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
The machine can be used in furniture, craft gift industry, sign industry, decoration and many other industries.
※ High frequency 0-24,000rmp spindle
※ T-slot table
※ Easy to use Mach 3 Controller
※ Brushless micro-stepper motors
※ Hiwin square rail
※ High precision TBI Ballscrew
Mach 3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC’s to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available.
The ABT-6090 machine comes standard with a 1.5kw high frequency collect spindle. These precision spindles require no maintenance, use industry standard ER collets, fully programmable speeds from 6000 to 24000 RPM, and comes complete with vacuum hood / hose support system and wrenches.
Automatic tool calibration pad allows for easy and accurate “Z” zero position for single and multiple tool changes through the program.
Imported high quality TBI ballscrew, which is high-precision, durable, long service life.
The machine adopts Taiwan Hiwin square rail, which is more than twice durable.
Alpha offers air vacuum pumps which are economical and practical
The addition of 4-axis rotary table assembly adds greater functionality to the machine’s capabilities allowing for 4-axis cutting in both 2D and 3D carving and indexing functions.
Alpha offers 2 bags powerful vacuum cleaner, to ensure a clean and tidy workshop.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Alpha CNC Co., Ltd. is a factory that specialized in manufacturing and exporting all kinds of cnc routers, such as cnc router machine center with automatic tools changer, multi-process cnc router, multi-head relief cnc router, 3D (Three-dimensional) cylindrical material carving and milling cnc router. We also produce laser engraving cutting machine, fiber laser marking machine, plasma metal cutting machine, waterjet cutting machine and letter bending machine etc. All machines are approved by ISO9001:2008 and CE. We have exported our machines to more than 50 countries, such as USA, Germany, Italy, Canada, Spain, India, Egypt, France, Russia, Brazil, Mexico, Belgium, Chile, South Korea, Uzbekistan, Vietnam, Southeast Asia, and so on.
