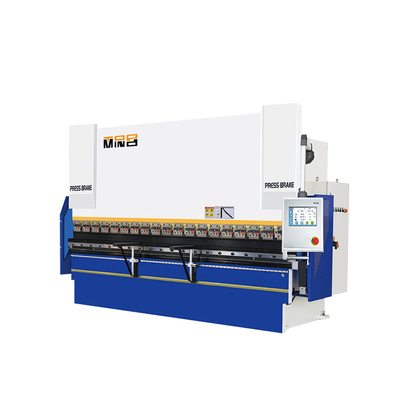

Economic Hydraulic Press Brake Metal Steel Plate Iron Solution WC67Y/K-125/2500 Bending Machine

1.0 set
MOQ
Economic Hydraulic Press Brake Metal Steel Plate Iron Solution WC67Y/K-125/2500 Bending Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Slider Stroke (mm): 200 Mm
Automatic Level: Fully Automatic
Throat Depth (mm): 500 Mm
Machine Type: Torsion Bar
Length Of Working Table (mm): 3200
Width Of Working Table (mm): 95 Mm
Dimension: 3400*1450*2250
Condition: New
Place Of Origin: ANH
Brand Name: Top Mind
Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation: Automatic
Extra Services: Machining
Year: 2022
Weight (KG): 8000
Motor Power (kw): 8.7 Kw
Key Selling Points: Easy To Operate
Warranty: 2 Years
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Other, Advertising Company
Showroom Location: Egypt, Canada, United States, Philippines, Indonesia, Russia, South Korea, South Africa, Malaysia
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Other
Name: WC67K
Application: Sheet Metal Bending
Raw Material: Stainless Steel
Color: Bustom
Type: NC Press Brake
Control System: TP10S
Style: Economic Solution
Basic Infomation
Place of Origin: ANH
Brand Name: Top Mind
Payment & Shipping Terms
Packaging Details: Standard Plastic Seaworthy Package and Bandage Fixed
Supply Ability: 500 Set/Sets per Year
Product Description
General Features
TopMind TP10S NC Hydraulic Press Brake
• Twice heat treatment frame, high rigidity table, optional mechanical compensation device, precise bending. • Hydraulic synchronous control ensures precise repeatability and ease of use. • The integrated hydraulic system can quickly and automatically switch to slow corners. •X axis, Y1, Y2 axis are programmed by CNC TP10S system.(E21 cheapest, E300, DA41S for choice) •Advanced variable frequency hydraulic control technology, more stable and reliable operation. • The optimal parameter ratio and optimal core configuration ensure stable performance and easy operation. •WC67K series bending machine is equipped with standard single-axis backstop system (x-axis) and double-axis bending angle system (Y1,Y2-axis), optional addition of v-axis compensation function, and selection of appropriate molds, which can easily bend complex shaped workpiece.
Detailed Configuration

Machine Structure
The main mechanical structure of the bending machine consists of a frame, a column, a ram, a worktable, a master cylinder and a backstop. The main components are optimized through finite element analysis and 3D software to fully ensure the structural strength and rigidity of each component.



Main Motor
Ensure the service life of the motor, it can provide more stable power to facilitate the operation of the machine.


USA SUNNY Oil Pump
Low noise, made of high-strength cast iron, unique internal noise reduction design, low sensitivity to oil contamination, ensuring long service life



Hydraulic System
Adopt hydraulic integrated system, hydraulic oil pump group adopts internal high pressure gear pump, low noise, reliable
operation.






Torque Synchronous Control System
Adopt steel torsion bar synchronization system, the structure is very simple, but the accuracy is very high. At the two ends of
the ram, there are two synchronizing devices so that the ram movement is always parallel to the worktable. This structure
highlights the effect of balancing motion during operation.
CONTROLLER


Standard Tp10s Control System
Cylinder stroke(Y axis) control

Backgauge(X axis) control Angel programming

Tool programming

Retract function

Up to 220 programs

Servo control

Up to 24 bends per program
Optional System
E21
E300
DA41S

Electric System

Main electrical components are selected from the international famous brand Schneider Electric company products

Punch&Die

Equipped with standard top punch and multi-V bottom die(core mould) for the use in various purposes. More press brake tooling can be selected as per your practical use.
Backgauge
Taiwan ball screw and rod to ensure the moving of X-axis with high accuracy.And the backgauge adopt timing belt
& wheel mechanism which controlled by servo motor. The up and down movement of the backgauge finger can be adjusted manually.
Other Components
Backgauge Fingers
Fast Clamp
Electric Mechanic Crowning
Technical Specification
Name
Unit
WC67K 100T3200mm
Bending Force
KN
1000
Bending Length
mm
3200
Poles Distance
mm
2700
Throat Depth
mm
500
Ram Strokes
mm
200
Max Open
mm
500
Power
KW
8.7
Dimensions(L*W*H)
mm
3400*1500*2420
Company Profile
FAQ
Q1: After I buy the machine, what will you do if I don't know some of the function?
A1: We will show you how to use the machine perfectly. Technical support and the video is available.
Q2: Will you show me how to install the machine?
A2: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and
our engineers are available to service machinery overseas.

Q3: How about your after sales service?
A3: Our experienced engineers are waiting to make service for you. One-top service term made us survive from fierce competition.

Q4: What's the policy for guarantee and broken parts?
A4: Warranty period of equipment lasts two years, during which the broken parts and spares caused by quality can be offered free.

Q5: How about your price?
A5: Give me reply, i will give you my favorable price immediately !

Q6: What kind of your payment terms?
A6: 30% deposit and the balance paid against copy of B/L in 3 days . Other Payment is negotiable.

Q7: What's your packages?
A7: Standard exporting package, plastic seaworthy package for free and standard wooden box.

Q8:Operation manual and video disc
A8: When delivery machine, the related operation instruction of model will delivery together with machine. And in the
instruction,there is teaching video disc .
