Home /Products/CNC Press Brake/Full Automatic Building Material Stores CNC Hydraulic Press Brake For Metal Steel Working

Full Automatic Building Material Stores CNC Hydraulic Press Brake For Metal Steel Working

1.0 Sets
MOQ
Full Automatic Building Material Stores CNC Hydraulic Press Brake For Metal Steel Working
Features Gallery Product Description Request A Quote
Features
Specifications
Slider Stroke (mm): 100 Mm
Automatic Level: Semi-automatic
Throat Depth (mm): 250 Mm
Machine Type: Torsion Bar
Length Of Working Table (mm): 2500
Width Of Working Table (mm): 1210 Mm
Dimension: 2550*1300*2210, 2550 X 1300x 2210 Mm
Condition: New
Place Of Origin: Anhui
Brand Name: DDM
Material / Metal Processed: Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation: Automatic
Extra Services: Round Bending
Year: 2020
Weight (KG): 3800
Motor Power (kw): 5.5 Kw
Key Selling Points: Competitive Price
Warranty: 3 Years
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Advertising Company, Other
Showroom Location: Uzbekistan, Australia
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Model: WC67K-63T/2500
Cutting Material: Aluminum Sheet ,mild Steel ,carbon Steel,stainless Steel
Bending Thickness: MS 3 Mm / SS 1.5 Mm
Bending Length: 3200 Mm
Nominal Pressure: 630KN
Poles Distance: 1970 Mm
Slider Travel: 100 Mm
Max Open: 320 Mm
Power: 5.5 KW
Certification: CE
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Basic Infomation
Place of Origin: Anhui
Brand Name: DDM
Certification: CE
Model Number: WC67K-63T/2500
Payment & Shipping Terms
Packaging Details: standard package for export .
Supply Ability: 500 Set/Sets per Year
Product Description
Product Overview
Full Automatic CNC Press Brake For Steel Metal Working

Machine Features

Machine Instroduction ·New EU streamlined design ·The whole frame of the press brake adopt integrated welding, and by tempering to eliminate the internal stress ·The press brake frame adopt shot blast to remove rust and sprayed with anti-rust treatment ·The frame is formed by the imported CNC three-dimensional machining center in one process, which ensures the parallelism and verticality of each mounting surface. ·The controller can control the Y1 and Y2 axes (Y1 controls the left cylinder and Y2 controls the right cylinder) to ensure the synchronous movement of the ram ·Quiet speed waiting and fast down, (about 25 decibels), low noise during pressing and return (the pressure in the hydraulic system is the closed loop control of the servo main motor) · The main oil pump does not apply work under the drive of the servo main motor, and the energy consumption is 60% lower than that of the general CNC press brake machine · he machine oil temperature is stable, which extending the service life of various components of the hydraulic system · More technical innovations to ensure the quality of bending, and powerful, easy to operate · The press brake adopt the latest high-frequency hydraulic control technology, which is faster, more efficient and more stable · The best parameter ratio, the optimal core configuration, the performance is stable, the operation is more convenient, and the bending of various workpieces in complex shape can be realized. DELEM DA66T control system: 1.Main body manufacturing by the CNC flooring and boring machine . 2.Technical utilize parametric 3D SolidWorks analysis. 3.Adopt integrated hydraulic system, more reliable and easy for maintenance. 4.Mechanical synchronous mechanism and the complex compensation are designed so as to raise the working piece precision. 5.The stroke and distance of the back gauge is adjusted by the motor and is well adjusted by hand, the adjustment is displayed by digital meters. 6.Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the time relays. 7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety. 8.Strict manufacturing process keep product standard reach Euro standard Standard Equipment: -HIWIN Ball screws &Polished rod with 0.05mm accuracy -Plate Support Arms -Telemecanique/Schneider Electrics -Germany Bosch-Rexroth Hydraulic -Germany Siemens Main Motor -Hydraulic &Electrical overload protection -Protection facility -laser protection

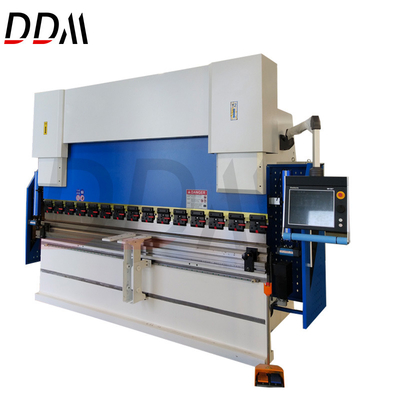

The front view of Full Automatic CNC Press Brake For Steel Metal Working
The elegant back view of Full Automatic CNC Press Brake For Steel Metal Working
Electrical Cabinet With Servo Motor & Schneider Parts for Full Automatic CNC Press Brake For Steel Metal Working
With imported Germany Bosch pump for Full Automatic CNC Press Brake For Steel Metal Working
With Siemens Motor for WC67K -63T/2500 Full Automatic CNC Press Brake For Steel Metal Working
customized cnc punch & die Full Automatic CNC Press Brake For Steel Metal Working

3D programming system -top standard programming DA66T for Full Automatic CNC Press Brake For Steel Metal Working

Machine Parameters
   Main Parameters

 Model
Bending Force
Bending Length
Upright Distance
Throat Depth
Stroke
Opening Height
Main Motor
Overall Dimensions
Kn
mm
mm
mm
mm
mm
Kw
L×W×H mm
WC67K/E-30t/1600
300
1600
1300
200
80
220
5.5
1650*1200*1700
WC67K/E-30t/2000
300
2000
1300
200
80
220
5.5
2000*1150*1700
WC67K/E-40t/2500
400
2500
2030
250
100
340
5.5
2500*1200*1900
WC67K/E-63t/2500
630
2500
2050
250
120
340
5.5
2500*1600*2200
WC67K/E-63t/3200
630
3200
2510
250
120
340
5.5
3200*1600*2200
WC67K/E-80t/2500
800
2500
2050
250
120
350
5.5
2500*1700*2200
WC67K/E-80t/3200
800
3200
2510
250
120
350
5.5
3200*1700*2200
WC67K/E-100t/2500
1000
2500
2050
320
120
380
7.5
2500*1500*2200
WC67K/E-100t/3200
1000
3200
2510
320
120
380
7.5
3200*1800*2500
WC67K/E-100t/4000
1000
4000
3100
320
120
380
7.5
4000*1800*2500
WC67K/E-125t/3200
1250
3200
2510
320
120
380
7.5
3200*1900*2600
WC67K/E-125t/4000
1250
4000
3100
320
120
380
7.5
4000*1435*2600
WC67K/E-160t/2500
1600
2500
2050
320
200
450
11
2500*1900*2700
WC67K/E-160t/3200
1600
3200
2510
320
200
450
11
3200*2000*2800
WC67K/E-160t/4000
1600
4000
3040
320
200
450
11
4000*2000*2800
WC67K/E-160t/5000
1600
5000
3800
320
200
450
11
5000*1900*3100
WC67K/E-160t/6000
1600
6000
4600
320
200
450
11
6000*1900*3300
WC67K/E-200T/3200
2000
3200
2600
320
250
540
15
3200*1820*3300
WC67K/E-200T/4000
2000
4000
3300
320
250
540
15
4000*2000*2850
WC67K/E-200T/5000
2000
5000
3800
320
250
540
15
5000*1950*3000
WC67K/E-200T/6000
2000
6000
4600
320
250
540
15
6000*1950*3300
WC67K/E-250T/3200
2500
3200
2600
400
250
580
18.5
3300*2000*3200
WC67K/E-250T/4000
2500
4000
3300
400
250
580
18.5
4000*2000*3400
WC67K/E-250T/5000
2500
5000
3800
400
250
580
18.5
5000*2000*3500
WC67K/E-250T/6000
2500
6000
4600
400
250
580
18.5
6000*2000*3600
WC67K/E-300T/3200
3000
3200
2600
400
250
580
18.5
3200*2100*3300
Packing & Delivery

Professional loading process for our press brake

press brake was putting into container carefully

Loading finished and machine fixed well

.

Our press brake arrived in customer factory .

Customer Photos



DDM customer are coming from all over the world such as Egypt ,Canada ,Belgium , USA,Israel ,Argentina ,Denmark ,Vietnam ,Indonesia ,Malaysia and so on . We warmly welcome your coming and cooperate with you .

Warranty & After-sales Service


DDM -Our Mission ,Your Solution .

1.Our guarantee time is 5 years from B/L date. If any component is damaged during guarantee time, we can deliver the component
to the customer by courier without any extra charge .
2. Our factory provide oversea engineer service training freely. The customer provide the double trip tickets, engineer salary ,
and accommodation for our engineer. The customer also can send the engineer to our factory for learning .
3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by wechat, Skype,
Email , whatsapp and Telephone at any time, we provide 24 hours on-line service.
