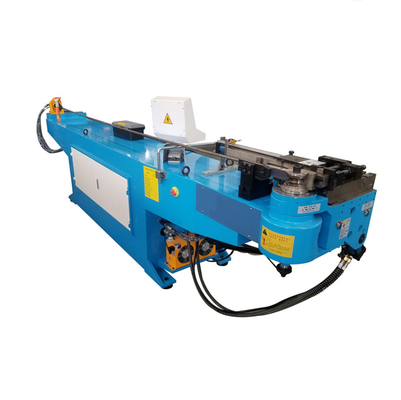

Building Material Stores Factory Price Horizontal Bend Bending Machine Steel Rebar Bending And Construction Machine

1 Set
MOQ
$1,500.00(1 - 1 Sets) $1,480.00(>=2 Sets)
Price
Building Material Stores Factory Price Horizontal Bend Bending Machine Steel Rebar Bending And Construction Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Material / Metal Processed: ALLOY
Condition: New
Bending Radius (mm): 20 - 250
Max. Bending Angle (Deg): 195
Bending Precision (Deg): 0.01
Place Of Origin: Jiangsu, China
Brand Name: OEM
Automation: Semi-automatic
Extra Services: Welding / Brazing
Power (kW): 7.5
Weight (KG): 3000
Warranty: 2 Years
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Retail, Construction Works , Energy & Mining
Key Selling Points: Automatic
Showroom Location: Argentina, South Korea, UAE, Canada, United States, Indonesia, Pakistan, India, Mexico, Thailand
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Type: Ice Machine
Shell Material: Stainless Steel
Material: Aluminum/aluminum Alloy
Unit Dimensions:: Custom Made
Ice Making Capacity: 160kgs / 24h
Function: Cool
Structure: Double Side/single Side/part Single Side
Voltage: 380v/50Hz
After-sales Service Provided: Online Support
After Warranty Service: Video Technical Support
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: OEM
Payment & Shipping Terms
Packaging Details: Pallet ,export wooden case or customized required
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Overview

Multi-head automatic bending machine

Overview: The bender uses a touch screen to set the operating interface, is centrally controlled by XC3 series PLC and uses solenoid valves to control the cylinder action, thus achieving continuous cyclic action in multi-head bending. The set of equipment can be worn fins of two or three tubes, the diameter of about ¢8.5 aluminum expansion tube for continuous multi-head bending. Solve the defects of the traditional bending machine. With stable and reliable performance, intuitive and convenient operation, high cost performance characteristics. Material: special materials Colour: custom colours
This bending machine is “multi bender bending machine”, applies for pull expanding or pushing expanding type fin evaporator.
1) Qty of Benders: Maximum20, according to request.
2) Radius of bender: R15 Al tube out diameter after expandingφ8.5mm
3) Bending dimension W 200~600
Features at a Glance
Main technical performance parameters
1.Applicable material: aluminum expanded tube
2.Applicable pipe: Pipe diameter about 8.5mm,
wall thickness 0.75mm
3.Layer spacing: 25mm
4.Bend radius: R15mm, three grooves
5.the number of elbows: N
6.Rack length: according
to the length of the product
7.Production tempo: 20~60S
8.Power supply: 220V AC, 200W
Components
The equipment consists of frame, guide rail, air bag, bending head, electrical control box, etc.
Functional description
The equipment is pre-equipped with N bending heads on the guide rails, and each bending head can be moved left and right on the guide rails. In preparation for the production of a product specification, the number of bending heads and the size of the product can be determined by the number of bending heads to be used and the distance between the heads (minimum outsourcing 240mm), adjusted to tighten the positioning fastening screws on the side of the heads. During production, the expanded tube is placed in the head mould in a predetermined position, and each bending head will be bent and demoulded in the order of first outside and then inside, with the head reset. This is generally done automatically by the machine from the time of production. Each elbow is equipped with a pressing mechanism to improve production efficiency.
No.
item
specific/Brand
Remark
1
Quantity of bender
Maximum 20 benders
depend on the requires
2
R of bending
R15
If different pls advice
3
Tube diameter
φ8.5mm after expanding
Aluminum tube A1070/1060 O
4
Bending dimension
W 220~600
depend on the requires
5
Productivity
1000pcs/shift/8h/operator
based on 10 benders
6
PLC
Delta
Can be defined
7
Body frame
Steel, painted
Color: green, similar as the photo
8
Air pressure
Min 6 bar(≥0.6MPa)

9
Power rating
2 KW

10
voltage
380V, 50HZ
according to local voltage
About Aidear

Aidear, your idea!

An excellent, specialized refrigeration system solutions provider.Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.Based on Honesty, Responsible, Technology and continuous Innovation.Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer.
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
Product Packaging

Packaging:

Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
