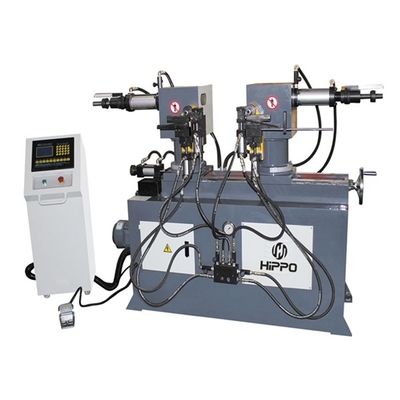

Semi-auto Double Head Building Material Hydraulic Pipe Bender OR Pipe Bender Head Parts

1.0 Sets
MOQ
Semi-auto Double Head Building Material Hydraulic Pipe Bender OR Pipe Bender Head Parts
Features Gallery Product Description Request A Quote
Features
Specifications
Material / Metal Processed: ALLOY, Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Condition: New
Bending Radius (mm): 35 - 160
Max. Bending Angle (Deg): 190
Bending Precision (Deg): 0.2
Place Of Origin: Jiangsu, China
Brand Name: HIPPO
Automation: Semi-automatic
Extra Services: Piercing & Punching
Power (kW): 5.5
Weight (KG): 1800
Warranty: 2 Years
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining
Key Selling Points: High Productivity
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Not Available
Video Outgoing-inspection: Not Available
Warranty Of Core Components: 2 Years
Core Components: Other
Machine Type: Tube Bending Machine
Product Name: Semi Automatic Pipe Bending Machine
Type: Double Head Bending
Name: DB38-90
Certification: Ce
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: HIPPO
Certification: ce
Payment & Shipping Terms
Packaging Details: Wrap by film, wood pallet, fumigation-free wooden box,iron case or as per your request. All packagings ensure100% safety in delivery.
Supply Ability: 8 Set/Sets per Month
Product Description
Product Description
High-speed double-end pipe bending machine, using NC control system, easy to set up and understand. Its special design can rotate 90 ° from the inside to the outside, and it can work synchronously with two axes. It is especially suitable for symmetrical pipe bending (such as car seats, bumpers, office furniture, etc.) and has high efficiency.

Features：
* The two sets of heads can be operated separately or simultaneously, and can bend 2 to 4 pipes at the same time.

* Microcomputer control, dialog operation, simple and easy program setting, flexible storage of various processing models for different processing programs.

* Quick adjustment design of left and right heads, strong locking force, difficult to deflect the center distance of two axes
when bending.

* High accuracy of bending angle and meet high safety standards.

* Water cooling device is provided, which is convenient for users to control the oil temperature and ensure the equipment to work stably under high temperature for a long time.
Detailed Images
What We Can Bend
Our Service

Standard tools: bending die, clamping die, pressure die.
We can provide optional tools: wiper die, mandrel. Effectively control the deformation and wrinkling of the processed pipe during bending
Tools material: mainly selected according to the pipe material and the bending difficulty. Common materials are 45#, Cr12,
industrial nylon, 42MrMo, copper. Generally, we use 42MrMo,it’s vacuum quenched, the surface is nitrided, and the hardness of the
mold surface is not less than HRC55 to ensure the wear resistance of the mold.

Tools size: customized according to the bending radius of different pipes.
Multiple layers of molds can be installed to achieve multiple bends with different bending radii on one pipe.
We will debug all the bending tools, and the customers can use them directly, just need to change different tools by themselves,
and the change is simple and convenient.

Optional device:
1. Push bending function, punching hole function, pipe cutting function
2. Automatic loading and unloading device.
3. IPC industrial computer type built-in WINDOWS operating system
4. Safety cover and safety mat to improve safety factor
Company Profile
Our Factory
FAQ

Q: How can I trust your quality?
A: 1. All of the machines will be tested successfully in the HIPPO workshop before shipment.
2. We supply a 2-year warranty for all equipment.
3. We can test your pipe/tube in our equipment before place the order, to ensure our equipment is suitable for your project.
4. Our engineers will go to your factory to install and debug the equipment, they will not be back until this equipment can
produce qualified products.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhangjiagang city (1.5hours by car from Shanghai). You can fly to PVG airport. We warmly welcome your
visit.

Q: What are your payment terms?
A: T/T or L/C, 30% as deposit, the balance should be paid before delivery but after inspection.

Q: What kind of after-sales service does HIPPO provide?
A: HIPPO will offer you all necessary documents, e.g. manual book, detailed machine installation, commissioning video to help you
correctly operate the machine. Technicians can be sent to your factory if necessary. Technicians will be responsible for guide
on-site installation and testing machines involved. Meanwhile, free training will be provided to the workers in your factory.

Q: Does HIPPO provide any warranties on its products?
A: Yes! HIPPO offers a 24-month warranty on all of our products. This warranty covers all manufacturing faults or defects. It does
not cover the malfunctions or failures caused by your incorrect operations. The warranty is valid from the date of installation
finish and machine normal working and is available to the original purchaser of the product only.

Q: Can I join in and become a distributor of HIPPO?
A: HIPPO is currently seeking to expand its global distribution network by providing simple, efficient, and robust solutions to
meet clients’ needs worldwide.

Products Related Questions
Q: What does HIPPO need to know to help me select a machine?
A: There are many factors that lead to the correct technology, below are primary factors that help us get going:

Material: carbon steel tube, iron tube, copper tube, stainless steel tube, aluminum tube, lead tube or others?
Diameter: Max.outside pipe diameter
Wall thickness: how many millimeters?
The drawings
Q: How long is your delivery?
A: We need 30 working days for production. If you cannot wait, please contact us freely, we will make any arrangements we can to
meet your requirements.

Q: How is the machine packed?
A: Wrap by film, wood pallet, fumigation-free wooden box, iron case, or as per your request. All packagings ensure 100% safety in
delivery.

Q: How does your company do regarding quality control?
A: Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end. Once
the project is ready, we test it to confirm it works to the established parameters of the project before it leaves our factory.
HIPPO has gained ISO and CE certificates.

Q: Can I custom my machine and print my own logo to the machine?
A: Yes, of course. Whether it’s a stand-alone machine or a complete system, HIPPO can customize our machines to fit your specific
application. We can customize robotic pick/place arms, automated loaders, and platforms to fit seamlessly into your production.

Q: How can I get replacement parts for my machine?
A: In the event of a machinery failure or fault, we can have the necessary part ready to ship on a 7-day basis if required,
including all kinds of toolings, such as bend die, clamp die, pressure die, mandrel, wiper die, saw blade and so on.
