Home /Products/CNC Mandrel Bender/Building Material Shops PLC Control Office Automatic Feeding Chair Making Machines Office Chair Frame CNC Machine and Pipe Bender Machinery

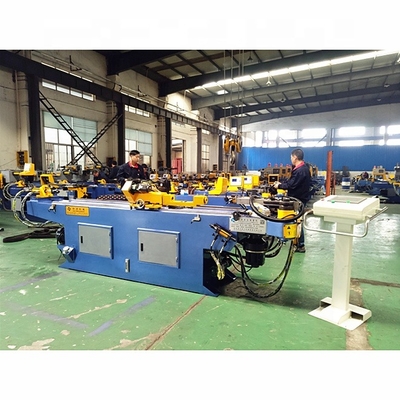

Building Material Shops PLC Control Office Automatic Feeding Chair Making Machines Office Chair Frame CNC Machine and Pipe Bender Machinery

1 Set
MOQ
$18,000.00(1 - 1 Sets) $16,000.00(>=2 Sets)
Price
Building Material Shops PLC Control Office Automatic Feeding Chair Making Machines Office Chair Frame CNC Machine and Pipe Bender Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Material / Metal Processed: Brass / Copper, Carbon Steel, Stainless Steel, Aluminum
Condition: New
Bending Radius (mm): 38 - 220
Max. Bending Angle (Deg): 180
Bending Precision (Deg): +-0.1mm
Place Of Origin: Jiangsu, China
Brand Name: Heli
Automation: Automatic
Power (kW): 4
Weight (KG): 1500
Warranty: 1 Year, 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works
Key Selling Points: Easy To Operate
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Pressure Vessel, Engine
Power: CNC
Color: Blue
Model Number: SB-38CNC2A1S
Voltage: 220V/380V/415V/440V/customized
PLC: JAPAN OMRON
Wall Thickness Of Pipe: 0.8-1.5
Max Bending Degree: 180 Degree
Weight: 1500
Certification: CE And ISO900
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Heli
Certification: CE and ISO900
Model Number: SB-38CNC2A1S
Payment & Shipping Terms
Packaging Details: wooden case / iron case/ accoring to customer's requirment
Supply Ability: 10 Set/Sets per Quarter
Product Description
Product Paramenters
machine feature
1. 2A means 2 servo motor on the machine, one controls feeding, the other one controls rotation. 1S means only one stack tooling on machine.
2. plc control.
3.touch screen operating
4. can save 800 unit bending file.
5.can bend steel pipe, ss pipe, copper pipe as well as aluminum pipe/aluminum profile.
6. can bend round pipe as well as square tube
machine model
SB-50CNC-2A-1S
maxi bending capacity
50x2,0mm for steel pipe
38x1.5mm for ss pipe
maxi bending angle
180 degree
machine length
4.4x0.9x1.4m
machine weight
1800kg
cooling method
fan cooling
the program supplies 2 working mode
1. manual mode
2. automatic mode
customer can choose any working mode to operate the machine
our company will set the bending program finished before shipping. buyer only need set the feeding length. rotation angle and
bending angle according to your bending drawing. or we can help customer to set all program
Details Images

OD:38mm

.

PLC control

mould

one set complete bending tooling includes
1. clamping die
2.bending die
3.mandrel
4.wiper die
5.guide die

one set complete bending tooling includes
1. clamping die
2.bending die
3.mandrel
4.wiper die
5.guide die
Samples
packing
company display
After sales-service


After the machine is installed in buyer’s factory, 365 days later, if any parts are damaged because of quality,
the seller will give new parts for free
I f any problem happens to the machine, Seller agrees to assist the Buyer in repairing the machine
through email or phone call. In case the presence of Sellers technician is required for repairing the machine,
the Buyer will pay for the tickets and accommodation of visiting technician.
