Fully Automatic Mold Creasing Blade 2Pt 3Pt Bending Die Cutting Machine For Packing can work at one time to improve efficiency.
2Pt And 3Pt Cnc Bender Plate 380V Voltage Press Brake Steel Rule Die Bending Machine Clicker Dies Automatic Steel Rule Bending Machinecan realize functions of bending, bridge, flat cutting, front & back lipping, fast and precision.
Automatic Bending, Cutting, Lip, Bridge Rule Die Bending Machine can realize auto-bridge and flat cutting, simple and practical.
Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
Unique imported mould tool design, easy to bend pattern, high precision of size, durable
In order to guarantee precision and long-life span, transmission and control parts are imported
Self-developed latest bending control system, easy to operate and upgrade available.
Fully English interface, easy to learn how to operate, make bending work easy.
automatic steel rule bending machine can be installed soon after bending patterns form the machine, no need extra more hard work.
It's widely used in box mould, doll mould bending, sticker die...etc.
Exactly to realize fully automatic bending, help to save plate making time.
It's the first creation of die cutting industry to combine automatic bender and automatic cutter into one set to make highly automated die plates manufacturing.

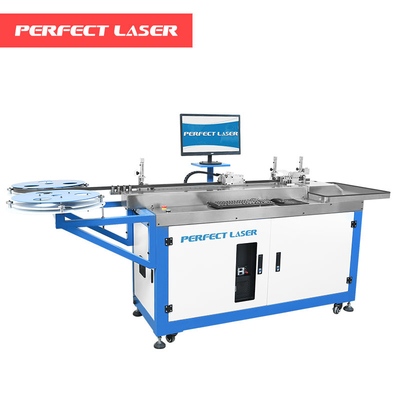

Model No. | PEC-100 for Widely Used Auto Knife Bender Machine For Die Cut |
Blade thickness (mm) | 0.45, 0.53, 0.71, 1.05(mm) |
Blade height (mm) | 8 - 30mm |
Front Min. Bending size (mm) | 1.5mm |
Back Min. Bending size (mm) | 1.0mm |
Feeding precision (mm) | ±0.03mm |
Bending flatness (mm) | ±0.2mm |
Max. Bending angle | 100° |
Min. ARC radius of 90° degree | 0.4mm |
Functions | Bending, cutting, bridging, lipping |
Cutting methods | Swaying off or Auto flat cutting |
Optimal pattern format | DXF |
Barometric supply | 0.6mpa |
Voltage supply | 380V 50/60HZ (standard) |
Total power | 1.3KW |
Over dimension of machine | 2700*1050*1350(mm) |
Packaging dimension | 1970*760*1370(mm) |
Total weight | 450KGS |
H.S. Code | 8462219000 |
Bending Blade thickness | 0.45mm |
Bending Blade height | 8-12mm |
1. Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
2. Panasonic Servo motor system + Ball-screw guide rail design, eradicate skidding and dislocated.
3. Unique imported mould tool design, easy to bend pattern, high precision of size, durable
4. In order to guarantee precision and long-life span, transmission and control parts are imported
5. Roller continuous feeding with servo digital work mode.(No need to feed with tool post repeated, high accuracy and speed)
6. Depending on the DXF, AUTOCAD figures, can finish all kinds of complicated patterns.
7. We take bend first and cut last .save the time and material for the user.
1, the company professional to industrial machines for more than 20 years
2, the quality of machines and production is famous in board and home
3, stable product quality , supply, the good faith management
Mid. Order: 1 set, more cheaper EXW Price: US $ 10600/SET
Mid. Order: 1set, more cheaper EXW Price: US $15,500/SET
Mid. Order: 1set, more cheaper EXW Price: US $ 39,000/SET
