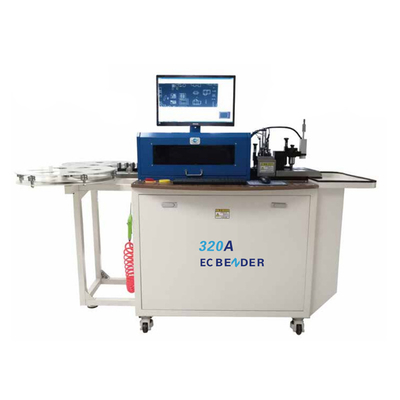

Die Board Die Industrial Bending Machine for Bending 2 PT 3 PT Rule Carbon steel

1.0 Pieces
MOQ
Die Board Die 	Industrial Bending Machine for Bending 2 PT 3 PT Rule Carbon steel
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Shandong, China
Condition: New
Machine Type: Beading Machine
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor
Brand Name: Jingding
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power: CNC
Automation: Automatic, Automatic
Extra Services: Slotting & Notching
Year: 2021
Weight (KG): 200
Key Selling Points: Easy To Operate
Warranty: 1 Year, 1-year
Applicable Industries: Manufacturing Plant
Showroom Location: None
Product Name: Auto Bending Machine
Usage: Bending Rule
The Max Bending Angle: 90 Degree
The Planeness: 0.25 Mm For Auto Bender Machine
Specification: 181X73X40 Cm
Material: Stainless Steel
After-Sales Service: Engineers Available To Service Machinery Overseas
The Min Radius For 90 Degree Angle: 0.5mm For Auto Bending Machine
After-sales Service Provided: Online Support
After Warranty Service: Online Support
Local Service Location: None
Basic Infomation
Place of Origin: Shandong, China
Brand Name: Jingding
Payment & Shipping Terms
Supply Ability: 100 Piece/Pieces per Month
Product Description



Die Board Die Cutting Steel Rule Auto Bender Bending Machine for Bending 2 PT 3 PT Rule
Products Description

Functions:
Rule in straight,rule in coil;auto feeding,bending,bridging,
cutting/twisting off,equips with pneumatic lipping tool.

Functions
Bending
Bridging
Cutting/twisting off
Rule Spec(mm)
0.45x7-12,0.53x23.8-32
0.71x23.8-32,1.07x23.8-32



>>> Machine Feature

Auto Bending ,Bridging , Cutting , Lipping, Broaching with 0.45-3mm thick and 8-60mm high blade.
Features:
Core parts made of:
2 sets Pansonic server motor(for Feeding and bending);
2 sets gear ruducer motor(for bridging cutting liiping);
2 sets Pansonic server motor(for broaching);
1 stes high precision HIWIN guide screw
1 sets Japan server motor reducer
High quality AirTag cylinder
Self develop controll system subject to change by customer needs Self protect and alarm system Stable and Easy to operate Low maintance fee.

Technical Specification
Product name
Auto bending machine
Size
700x900x1200
Weight
200kg
Warranty
1 year
Voltage
Single Phases220V,20A3KW,50/60Hz
Steel Rule Height Range
7-80mm
Steel Rule Thickness Range
0.40~3mm
MOQ
1
LOGO customization
accept
Outer packaging customization
accept
Pattern customization
accept
Details
Samples
Safety:
Auto Bender Manager can optimize itself automatically when dealing with line to line, arc to arc, arc to line tangency and ill connection,breakpoint and Singular elements.
By pre-setting, ignore ill tangency or ill connection in the drawings.
High accuracy , High efficiency.


Applicable Industries:

Can be widely used in Printing,Packing,Mould Making,Advertising Signs,Metal Plates,Light-fixture,Hardware,Electrical
Components,Craftworks,...etc. Industries.

Suitable Materials:

Plywood,Acrylic Board,MDF Board,Iron Board,Steel Board,Stainless Steel Board,Aluminum Board,Copper Board,...etc

Related product:Laser Cutting Machine For Plywood


JD--400CD is a gantry-type medium power cutting machine with a processing range of 1250x1850mm, with a domestic 400w laser. It can be upgraded to 700w and 1000w in the future. The design life is 10 years, the machine is guaranteed for two years, and the laser is guaranteed for one year. Cutting plywood, carbon steel, acrylic, knife template.
Company Profile

Shandong Jingding CNC Technology Co., Ltd.is a is professionally in manufacturing flat & rotary die board, die board laser cutting machine,laser engraving machine,cnc router and providing other related die making materials and machines. we have been in the industry for over 10 years. And our products have been exported to North America, Southeast Asia, Australia, South America, Africa and other regions and we also have many distributor and partner in overseas.

Company Advantage:
1.Self develop laser generator and machine structure the whole machine is stable and reliable. 2.10 years of professional experience in the production of large laser equipment, providing sound technology, timely service and long-term protection. 3.Most of the products are in stock,laser machines,CNC machines, can be delivered in 15 days.
Packing & Shipping




Each machine is well packed with export standard wooden box.
We will make photos for the machine before the shipping and let you know the processing of the packing and loading.

>>> Our Services

1. Our machine is guaranteed for one year, not including normal consuming parts.
2. User-friendly English manual and Video CD for machine using and maintaining.
3. Our self-developed English software can do all kinds of pattern recognition.
4. We supply 1 year warranty and LifeLong engineering service.

FAQ
We offer the fiber laser for cutting metal,laser engraving machine for wood and metal,laser Die Board cutting machine for cutting die board up to 22mm, and Auto Blade bender for 1.3pt 2pt 3pt 4pt and height from 8-65mm .steel rule bender, and . Q1. How do I learn to operate laser machine and CNC machine Auto Blade Bender Machine,? A:1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains, 2) Moreover, WhatsApp, Skype, Team viewer online service is available for you.
