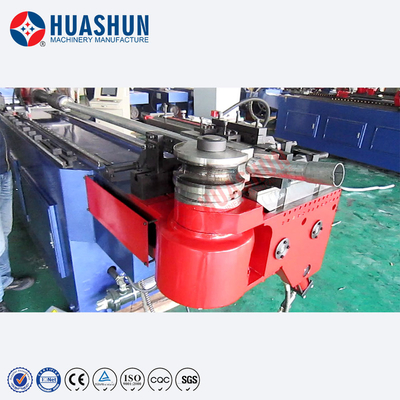

Factory Hot Sale 50NCMP 3D SS Automatic Used Stainless Steel Iron Pipe Bender and Tube Bending Machine Exhaust Pipe Bender

1 Unit
MOQ
$15,000.00(1 - 4 Units) $13,500.00(>=5 Units)
Price
Factory Hot Sale 50NCMP 3D SS Automatic Used Stainless Steel Iron Pipe Bender and Tube Bending Machine Exhaust Pipe Bender
Features Gallery Product Description Request A Quote
Features
Specifications
Material / Metal Processed: Mild Steel,Stainless Steel,Brass/Copper,Aluminum Etc.,
Condition: New
Max. Bending Angle (Deg): 190
Bending Precision (Deg): 0.1
Place Of Origin: Jiangsu, China
Brand Name: HSHUN
Automation: Automatic
Extra Services: End Forming
Power (kW): 5.5
Weight (KG): 2200
Warranty: 1 Year
Applicable Industries: Manufacturing Plant
Key Selling Points: Automatic
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Keyword: 3D Automatic SS Stainless Steel Iron Pipe And Tube Bending Machine
After-sales Service Provided: Overseas Service Center Available, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support
Raw Material: PIPE
Power: Hydraulic
Model: SB 50NCMP
PLC: OMRON
Servo Motor: MITSUBISHI
Colding Way: Air Colding Or Water Colding
Technical: Cold Bending
Product Name: 3D Automatic SS Stainless Steel Iron Pipe And Tube Bending Machine
Certification: ISO 9001:2000
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Malaysia, Australia, Morocco, Kenya, Argentina, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Ukraine, Uzbekistan, Egypt, Canada, Turkey, United Kingdom, Italy, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indo
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: HSHUN
Certification: ISO 9001:2000
Model Number: SB 50NCMP
Payment & Shipping Terms
Packaging Details: Hot Sale 50NCMP 3D Automatic SS Stainless Steel Iron Pipe and Tube Bending Machine Used Exhaust Pipe Bender Standard export packing
Supply Ability: 50 Set/Sets per Month Hot Sale 50NCMP 3D Automatic SS Stainless Steel Iron Pipe and Tu
Product Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products
NCMP Pipe Bending Machine Product Sample


Final Products Application

Widely used in: automobile, motorcycle, aerospace, bicycle, baby carriage, fitness and leisure equipment, steel furniture
manufacturing, air conditioning piping, food machinery, anti-theft doors and windows, exhaust pipe manufacturing, stainless steel pipe and other pipe manufacturing industries.
Cart
Fitness and gym equipment
Guardrail
Exhaust pipe manufacturing
Air conditioning piping
Beverage line
Furniture frame
ATV structure

Bicycle, electric vehicle frame
Main Products
HS-SB-50NCMP Pipe Bending Machine.
1. Servo motor drives the bending arm to accelerate the movement speed, and obtain rapid acceleration and rapid deceleration, as well as large torque at the same time. It adopts precision, heavy-duty linear rolling bearings in the press touch, press touch boost system and center line radius adjustment system;
2. The trolley adopts directly driven rack and pinion and servo motor, which provides the system with high precision and high reliability; 3. Self-calibration pressure with automatic positioning can be set quickly; 4. Three-station platform: It can process multiple curvatures, multiple diameters, mixed bends and rectangular polygons; 5. Semi-automatic or automatic feeding table; 6. The position-controlled pipe assist system can be applied to the application of small radius and complex elbows; 7. Power assisted mold replacement, making mold replacement simple and efficient.
Machine Details
Machine details.
* Interactive PLC touch screen offers easy access to auto and manual operating modes.
* System diagnostics and multiple language capability.
* Standard clockwise bending direction.
* Fully hydraulic clamping on clamp die and pressure die.
* Drop-way hydraulic clamping.
* Direct acting hydraulic pressure die with adjustable speed valve.
* Maximum 32 sets of program storage,Maximum 20 bends for each program.
* With Independent programmable speeds Y, B, and C axes.
* Programmable material spring back settings for each bend angle.
* Automatic release of tube prior to final bend.
* Bending Axis-Driven by Cylinder,Feeding Axis-by Manual,Rotating Axis-Driven by Servo Motor.
* Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
* Foot Pedal Cycle start.
* With Water Cooling System.
* One set of Tooling for Draw Bending.
* Wiper die Bracket.
* 1 Mandrel Rod.
* Operation and Maintenance Manual.
* Tool Box with Adjusted Tools.
* Electric: As required (3 phase 220V or 380V or 415V...)
Optional.
* Industrial Computer Controlling
* Anticipate Mandrel Extraction
* Automatic mandrel/machine lubrication
* Anti-clockwise bending direction
* Machine effective length over mandrel
* Safety Mat

Want to know more details about our machine, inquiry us now!

Product Paramenters
Name
Unit
SB-50NCMP
Max Bending Capacity
mm
Φ50×2.0
Max Bending Radius
mm
R250
Can customized as per customer’s requirement
Min Bending Radius
mm
R20
Through Effective Distance Over Mandrel
mm
3700
Can customized as per customer’s requirement
Max. One Time Feeding Length
mm
2600
Can customized as per customer’s requirement
Max Bending Degree
°
190
Bending Unit
pieces
32
Bending Axis
Speed
Deg/sec
100
Accuracy
mm
±0.1
Power
KW
Controlled by Hydraulic
Feeding Axis
Speed
Deg/sec
1000
Accuracy
Deg
±0.1
Power
KW
1 Cotrolled by Servomotor
Date Input
/
1.Coordinate ( X, Y, Z )
/
2.Working value ( Y, B, C )
Max. Pressure
Mpa
16
Max Storage Units
Group
1000
Can customized as per customer’s requirement
Machine Dimensions
mm
4500*950*1350
Appro. Weight
Kgs
2200
Recommend Products

NCMP Pipe Bending Machine.

NCMP Pipe Bending Machine SB-38NCMP
NCMP Pipe Bending Machine SB-50NCMP
NCMP Pipe Bending Machine SB-63NCMP
NCMP Pipe Bending Machine SB-75NCMP
NCMP Pipe Bending Machine SB-89NCMP

CNC Pipe Bending Machine.

CNC Pipe Bending Machine SB-38CNC-2A-1S
CNC Pipe Bending Machine SB-38CNC-2A-2S
CNC Pipe Bending Machine SB-38CNC-5A-3STR
CNC Pipe Bending Machine SB-38CNC-5A-3SLR
CNC Pipe Bending Machine SB-50CNC-2A-1S
CNC Pipe Bending Machine SB-50CNC-5A-3STR
CNC Pipe Bending Machine SB-63CNC-4A-2S
CNC Pipe Bending Machine SB-63CNC-5A-3STR
CNC Pipe Bending Machine SB-75CNC-2A-1S
CNC Pipe Bending Machine SB-89CNC-2A-1S

If you want to know more model types machine, inquiry us now!

Why Choose Us
Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Huashun Machinery started factory in 2000 from producing pipe bending machine, and then expands the whole line of pipe equipments.Lead the manufacturing of pipe equipments after 19 years' of development.

The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Factory.
It is located in Zhangjiagang City, along the Economic circle of Yangtse River Delta, Located on the National Road,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our factory is combined with manufacture, sales, service, and supply of Pipe equipments, We are devoted to providing a one-stop sales model to customer; We give more important care on our customer's satisfaction. So far, over 108 countries and regions have enjoyed our products and service. Our success has been mainly achieved by following the corporate philosophy of being firmly committed to "Integrity is the base, Customer is the first".

Certificates.
FAQ
Q:Are you manufacturer or trading company?
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.

Q: What is the certificates available?
A: CE & ISO9001

Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
