Home /Products/Sliding Panel Saw/Furniture Woodworking Machinery Woodworking Sliding Table Horizontal Panel Saw Machine

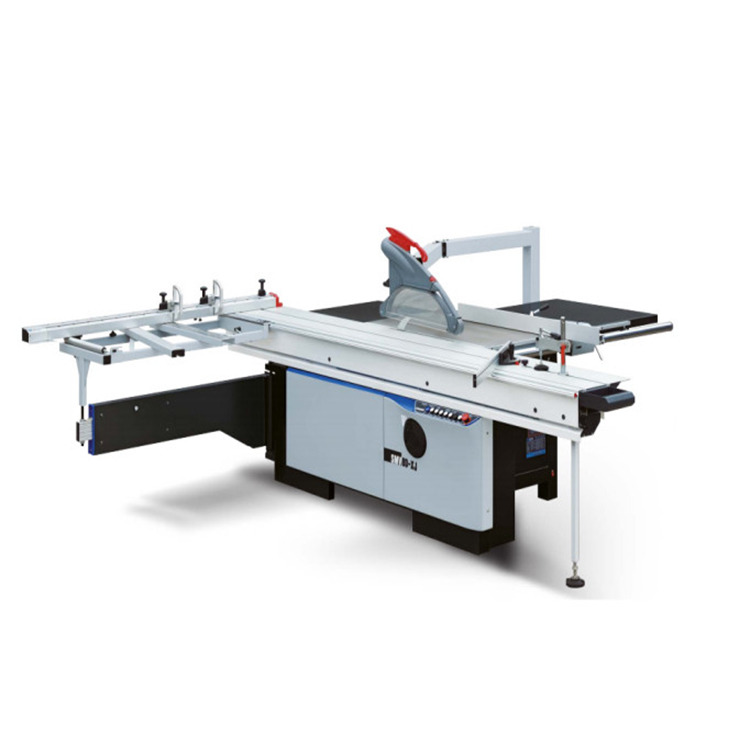

Furniture Woodworking Machinery Woodworking Sliding Table Horizontal Panel Saw Machine

1 Set
MOQ
Furniture Woodworking Machinery Woodworking Sliding Table Horizontal Panel Saw Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Place Of Origin: Shandong, China
Brand Name: GIANTWAY
Usage: Wood Cutting
Voltage: 220V / 380V
Dimension(L*W*H): 3350*3600*900mm
Warranty: 1 Year
Application: Furniture Factory
Weight (KG): 930 KG
Power (kW): 5.5
Key Selling Points: Easy To Operate
Max.Cutting Height At 90°(mm): 80mm
Max.Cutting Height At 45°(mm): 55mm
Max. Length Of Workpiece (mm): 3200mm
Applicable Industries: Furniture Factory
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Dimension Of Slidng Table: 3200*435mm
Gross Cut Capacity: 3200mm
MAIN Saw Blade Diameter: 400mm
Height Of Cut: 80mm
Height Of Cut At 45 Degree: 55mm
Main Spindle Diameter: 30mm
Scoring Spindle Diameter: 20mm
Speed Of Main Saw Spindle: 3000/4000/5000r/min
Main Motor: 5.5kw
Basic Infomation
Place of Origin: Shandong, China
Brand Name: GIANTWAY
Payment & Shipping Terms
Packaging Details: Standard: Polythene sav vacuum sealed + containerization
Product Description
Product Description

Technical Parameters:

Ÿ dimension of slidng table: 3200×435mm

Ÿ gross cut capacity: 3200mm

Ÿ width of cut between saw blade and rip fence: 1300mm

Ÿ height of cut:80mm

Ÿ Height of cut at 45 degree: 55mm

Ÿ MAIN saw blade diameter: 400mm

Ÿ scoring saw blade diameter: 120mm

Ÿ main spindle diameter: 30mm

Ÿ scoring spindle diameter: 20mm

Ÿ speed of main saw spindle: 3000/4000/5000r/min

Ÿ speed of scoring saw blade: 8000r/min

Ÿ main motor: 5.5kw

Ÿ scoring motor: 0.75kw

Ÿ Net weight:930kg

Ÿ Overalll dimensions:3350×3600×900mm

Advantages:

Ÿ Leuco SAW BLADE, SCORING SAW WITH DOUBLE BLADES

Ÿ MOTORIZED up and down FOR MAIN SAW AND SCORING SAW

Ÿ type a protection Hood

Ÿ guide shaft spindle: 50mm

Ÿ lubrication pump

Ÿ steel pressure kit

Ÿ MANUAL FOR RIP FENCE

Ÿ MANUAL tilting for 45 degree

Ÿ Max. MAIN Saw blade DIAMETER:400mm
