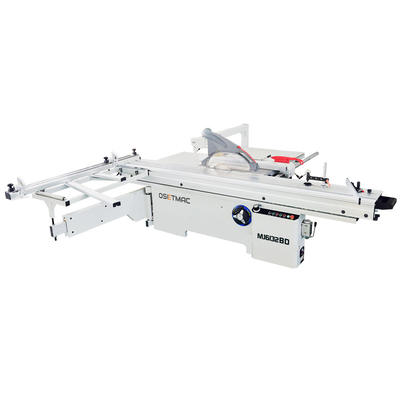

OSETMAC Horizontal Electric Lifting Sliding Table Saw MJ6132BD for Panel Cutting

1.0 Sets
MOQ
OSETMAC Horizontal Electric Lifting Sliding Table Saw MJ6132BD for Panel Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Place Of Origin: Shandong, China
Brand Name: OSETMAC
Usage: Cutting Wood
Voltage: 380v
Dimension(L*W*H): 3250*3450*900mm
Warranty: 1 YEAR
Application: Furniture Making
Weight (KG): 700 KG
Power (kW): 5.5KW
Key Selling Points: Long Service Life
Max.Cutting Height At 90°(mm): 100mm
Max.Cutting Height At 45°(mm): 70mm
Max. Length Of Workpiece (mm): 3100mm
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Turkey, United States, Viet Nam, Brazil, Malaysia, Tajikistan
Showroom Location: None
Certification: CE
Basic Infomation
Place of Origin: Shandong, China
Brand Name: OSETMAC
Certification: CE
Payment & Shipping Terms
Packaging Details: WOODEN CASE PACKING stretch film
Supply Ability: 10000 Set/Sets per Year
Product Description
Product Description

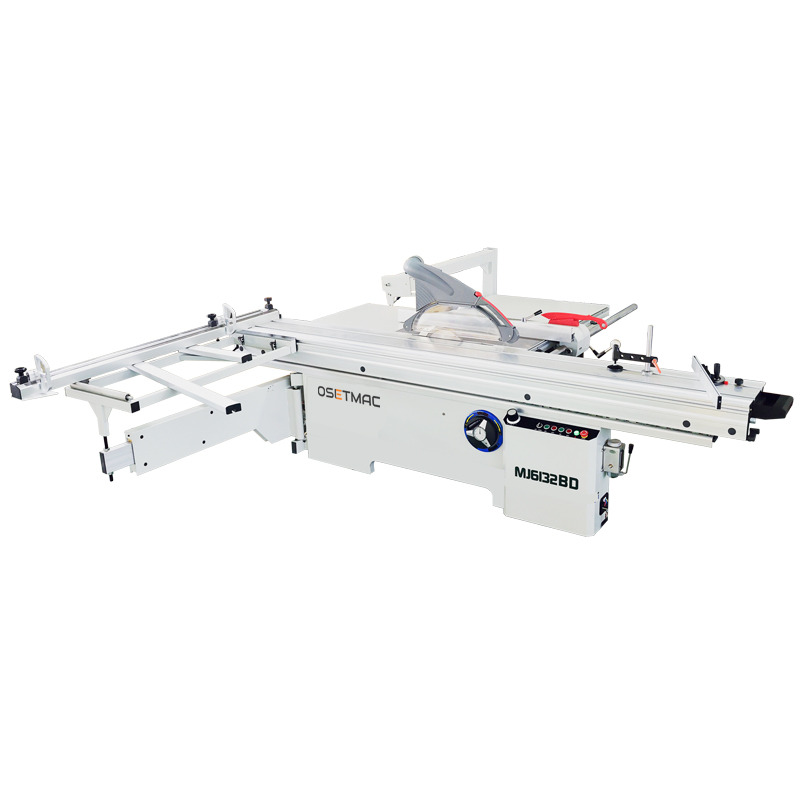

High Precision Sliding Table Saw MJ6132BD
Inner Structure
This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its
good heat dissipation. 25mm metal plate guarantees the compressive strength and the high precision of the inter-machine, which can
also reduce the shock of the machine.

  • Main Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and
motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
Detailed Images
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Size Information
Size Chart of This Design
                                                                          Parameters
Sliding Table Dimension
3200*380mm
Cast Iron Table Dimension
910*620*80mm
length extension table
905*680*70mm
width cutting extension table
640*680*70mm
Main Saw Diameter
300mm
Main Saw Blade Diameter Maximum
350mm
Main Saw Bore Diameter
30mm
Max. Cutting Height With Bade at 90
80/100mm（φ300/350）
Max. Cutting Height With Bade at 45
50/70mm（φ300/350）
Main Motor Power
5.5KW
Main Blade Speed
4000/6000RPM
Scorning Saw Blade Diameter
120mm
Scorning Saw Bore Diameter
20mm
Scorning Saw Motor Power
1.1KW
Scorning Blade Speed
8000RPM
Max. Cutting Width
1250mm
Max. Cutting Length
3100mm
Blade Tilting Adjustment
0-45°
Main Saw Height Adjustment
Electric
Scorning Saw Height Adjustment
Manual
Dust Guard Outlet Diameter
80mm
Dust System Outlet Diameter
100mm
Dimension of Wood Packing Carton
2250*1200*1100mm(Main Crate )
3400*450*290mm(Sliding Table)
Dimension
3250*3450*900mm
G. W.
800KG
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
good aftermarket
* The whole machine is guaranteed for one year, providing online after-sales service and spare parts service for life
* Provides use video and install video
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.

Our Services & Strength

Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
