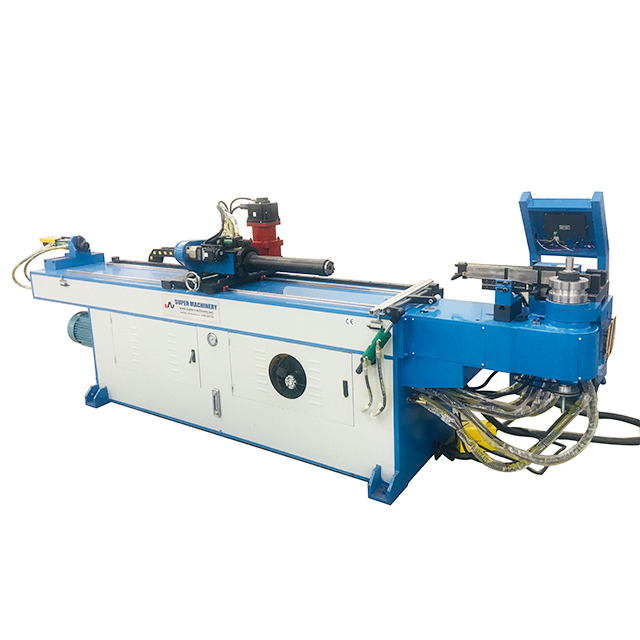

1.CNC-2A-1S Series numerical control single-head pipe bending machine combination advanced Italian technology.
2.Adopt VDU touch screen operating panel order,Y, B two coordinates of motions under precision control by industrial computer.
3.Industrial computer can realize full-auto mandrel on or mandrel off rapid bending.
4.More functions such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection.
5.Pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor,pipe bending(C axis) drove by cylinder.
6.Advanced technology, high automation reliability, integrated design .
7.Have CE Certification , Accept LC,TA,TT payment term.
Optional Functions for CNC-2A-1S Auto Pipe Bending Machine:
1.Servo motors for axis:2axis(standard),3axis,4axis,5axis,6axis...
2.Control System: PLC (standard) or IPC.
3.Bending Mould layer:single layer(1s)(standard) ,double layers(2s),triple layers(3s)
4.Push Bending :Rotating roll bending (V)
5.Punching:Hole punching (E)
Main Components For CNC-2A-1S Auto Pipe Bending Machine:
1.Touch Screen:Taiwan Weiview
2.PLC:Japan Mitsubishi
3.servo motor:Japan Mitsubishi
4.valve:Japan Yuken
etc
| Optional Push bending device | optional multi-layer tye |
Machine Model Specification for CNC-2A-1S Auto Pipe Bending Machine
| Model No. | Unit | 18CNC | 28CNC |
38NCB CNC-2A-5A |
50NCB CNC-2A-5A |
63NCB CNC-2A-5A |
76NCB CNC-2A-5A |
| Max bending capacity | MM | 18*2 | 28*2 | 38*2 | 50*2 | 63*4 | 76*5 |
| Bending radius | MM | 3~150 | 5~180 | 10~200 | 15~250 | 20~300 | 25~350 |
| Bending angle | Degree | 0~190° | |||||
| Useful length | MM | 1800 | 2800 |
2300 3200 |
2500 3500 |
3000 4000 |
3200 4200 |
| Power | KW | 2.2 | 2.2 | 4.0 | 5.5 | 5.5 | 7.5 |
| Dimension | CM | 300*70*130 | 350*75*130 |
250*75*110 420*85*135 |
300*80*110 480*85*135 |
400*95*120 520*110*135 |
420*110*120 580*120*135 |
| Extend useful length | Optional | ||||||
| Push bending | Optional | ||||||
| Multi level bending | Optional | ||||||
| Model No. | Unit |
89NCB CNC-2A-5A |
114NCB CNC-2A-5A |
129NCB CNC-2A-5A |
140NCB CNC-2A-5A |
168NCB CNC-2A-5A |
219NCB CNC-2A-5A |
| Max bending capacity | MM | 89*8 | 114*8 | 129*12 | 140*14 | 168*16 | 219*20 |
| Bending radius | MM | 30~450 | 40~550 | 50~650 | 50~650 | 60~850 | 80~1200 |
| Bending angle | Degree | 0~190° | |||||
| Useful length | MM |
3800 4600 |
4500 4800 |
4600 5200 |
5200 5800 |
6500 6000 |
6800 6500 |
| Power | KW | 11 | 15 | 18.5 | 18.5 | 22 | 30 |
| Dimension | CM |
530*135*135 620*150*135 |
630*150*140 680*165*135 |
650*150*140 720*180*135 |
680*180*140 750*185*155 |
750*230*160 880*200*155 |
800*240*170 950*210*135 |
| Extend useful length | Optional | ||||||
| Push bending | Optional | ||||||
| Multi level bending | Optional | ||||||
Machine Details Specification CNC-2A-1S Auto Pipe Bending Machine
Mould Tooling Specification CNC-2A-1S Auto Pipe Bending Machine
Machine Packing for CNC-2A-1S Auto Pipe Bending Machine
Nantong Super Machinery Co.,Ltd. Founded 1996, is the top manufacturer in China Specializing in steel metal working machine and a variety of equipment solutions for the global supplier.
The business principal of our factory is "Customer First and Faith Foremost" and what we pursue is to meet the requirements of customers and do better for them. Businessmen from at home and abroad are welcomed to our factory for business talks and work hand in hand for the prosperous future.
LCL Loading Packaging: Steel pallet and plywood case.
——FCL Loading Packaging: Steel pallet with plastic film.
——Shipping: by sea
- Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week
- Reply within 24 hours
- Provide relevant product information
- Give technical suggestion
² Provide After-sales service 24hr × 7days per week
- Test the machine before shipment
- Provide technical guidance relate to use the machine
- Supply one-year warranty period for the machine
- Provide the spare parts at cost price after warranty period
- Collect the feedback for the machine working
- Provide long-term technical assistance.
